• Auxiliary pwr point
• Color-coordinated molded cloth headliner
• Color-coordinated scuff plates
• Door activated dome lamp w/delay, I/P switch operation
• Dual front color-coordinated coat hooks
• Dual front grab handles
• Dual map lights
• Front passenger roof ride handles
• Inside hood release

• (2) front tow hooks
• (6) LT245/75R17E all-season BSW Continental tires
• 115-amp HD alternator
• 162" wheelbase
• 4-wheel anti-lock brakes
• 4.10 axle ratio
• 40 gallon aft-axle fuel tank
• 78 amp/hr battery

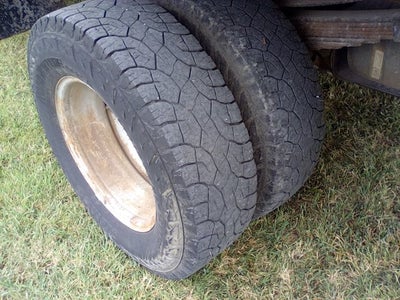

• Dual rear wheels
• Four wheel drive
• Front/rear stabilizer bar
• HD gas shock absorbers

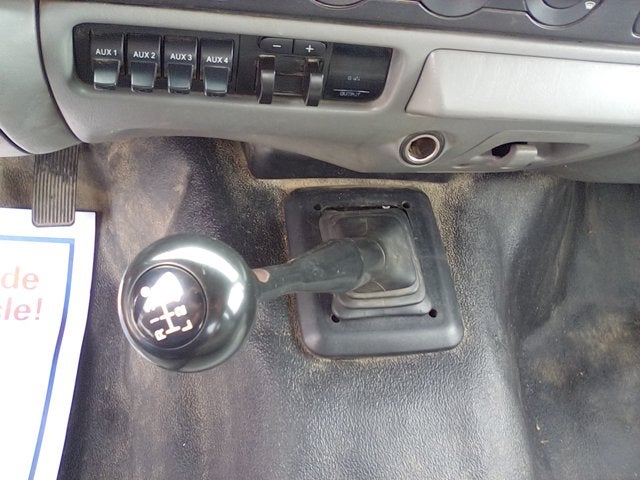

• Manual transfer case & hubs
• Mono-beam front axle w/coil spring suspension
• Pwr 4-wheel disc brakes w/hydro-boost
• Pwr steering w/steering damper
• Stationary elevated idle control

• 4-wheel anti-lock brakes
• Child tethers on all passenger seats
• Driver/front passenger airbag supplemental restraint system
• Dual-note electric horn
• Passenger side airbag deactivation switch

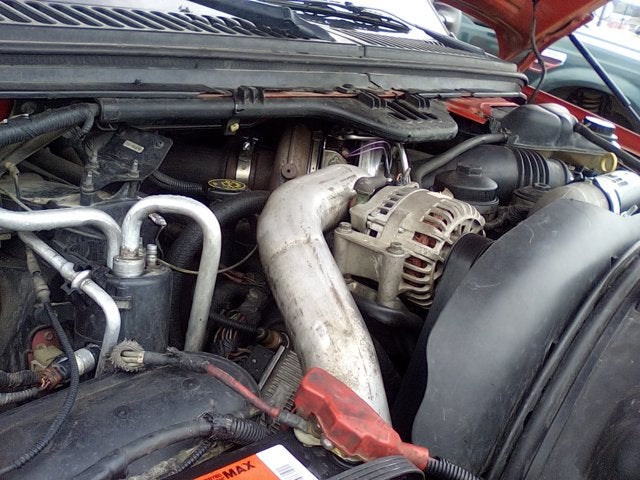

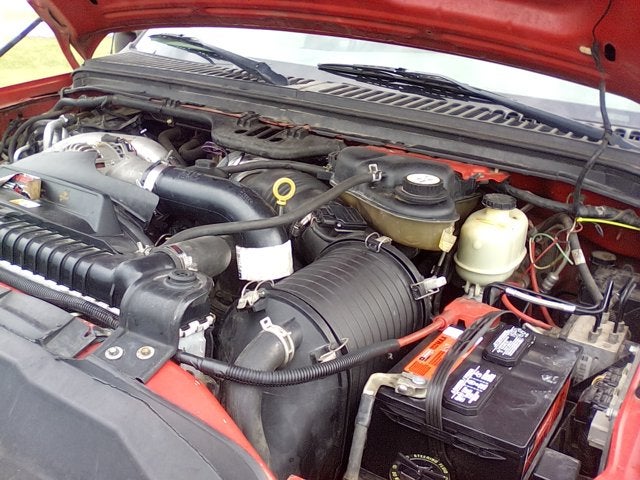

6.0L DI V8 POWERSTROKE TURBO-DIESEL ENGINE

• 110-amp HD alternator
• dual 78 amp/hr 750 CCA battery
• I/P air filter minder

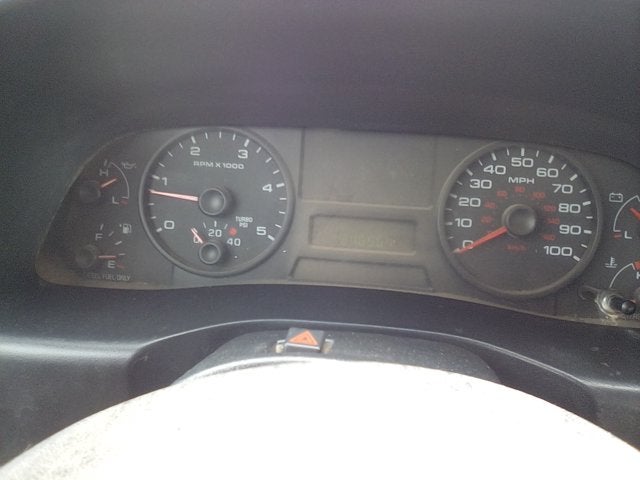

• turbo boost gauge

• Four Wheel Drive
• Tow Hooks
• Tires - Front All-Season
• Tires - Rear All-Season
• Power Steering
• 4-Wheel Disc Brakes
• Intermittent Wipers
• Third Passenger Door
• Fourth Passenger Door
• Power Door Locks

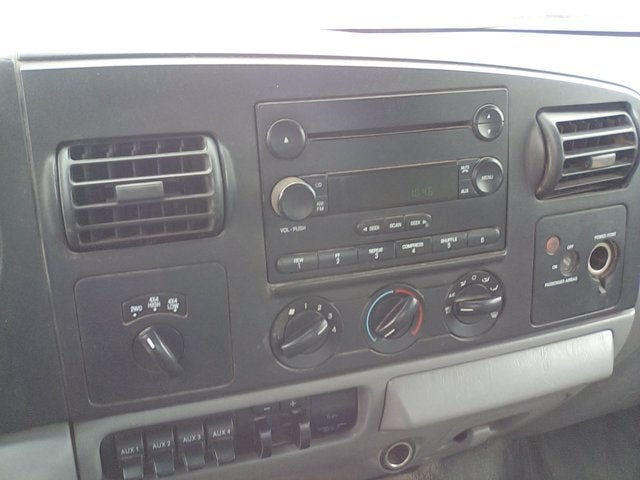

• AM/FM Stereo
• Power Outlet
• Passenger Vanity Mirror
• Front Reading Lamps
• Driver Air Bag
• Passenger Air Bag
• Passenger Air Bag On/Off Switch

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 750
• Cold Cranking Amps @ 0° F (2nd): 750
• Maximum Alternator Capacity (amps): 115
• Maximum Alternator Watts: - TBD -
• Maximum Alternator Watts: 1650
• Cooling System
• Total Cooling System Capacity (qts): 28.5
• Total Cooling System Capacity (qts): 26.4
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 9750
• Curb Weight - Front (lbs): 4370
• Curb Weight - Front (lbs): 3931
• Curb Weight - Rear (lbs): 2660
• Curb Weight - Rear (lbs): 2584
• Gross Vehicle Weight Rating Cap (lbs): 13,000
• Gross Combined Wt Rating (lbs): 23,500
• Gross Combined Wt Rating (lbs): 20,500
• Trailering
• Dead Weight Hitch - Max Trailer Wt. (lbs): 5000
• Dead Weight Hitch - Max Tongue Wt. (lbs): 500
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 15,000
• Wt Distributing Hitch - Max Trailer Wt. (lbs): 12,800
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1,500
• Wt Distributing Hitch - Max Tongue Wt. (lbs): 1,280

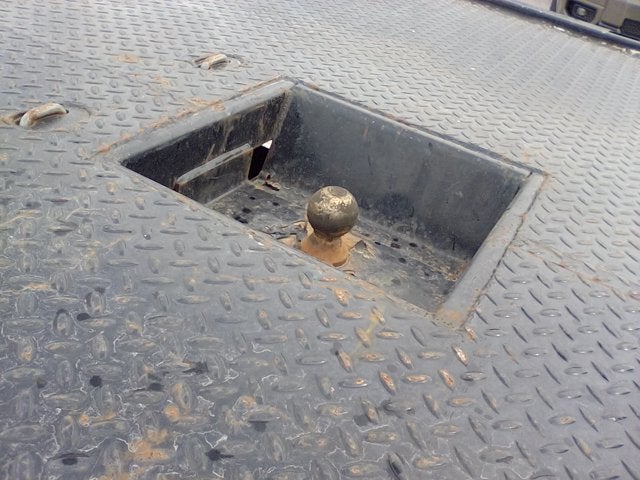

• Fifth Wheel Hitch - Max Trailer Wt. (lbs): 12,800
• Fifth Wheel Hitch - Max Tongue Wt. (lbs): 1280
• Suspension
• Suspension Type - Front: Coil Spring
• Suspension Type - Rear: Multi-Leaf
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 9750
• Axle Type - Front: Mono-beam
• Axle Type - Rear: Full-Floating
• Axle Capacity - Front (lbs): 6000
• Axle Capacity - Rear (lbs): 9750
• Axle Ratio (:1) - Front: 4.10
• Axle Ratio (:1) - Rear: 4.10
• Shock Absorber Diameter - Front (mm): 35
• Shock Absorber Diameter - Rear (mm): 35
• Stabilizer Bar Diameter - Front (in): - TBD -
• Stabilizer Bar Diameter - Rear (in): - TBD -
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.66 x 0.58
• Rear Brake Rotor Diam x Thickness (in): 13.39 x 0.47
• Tires
• Front Tire Order Code: TBK
• Rear Tire Order Code: TBK

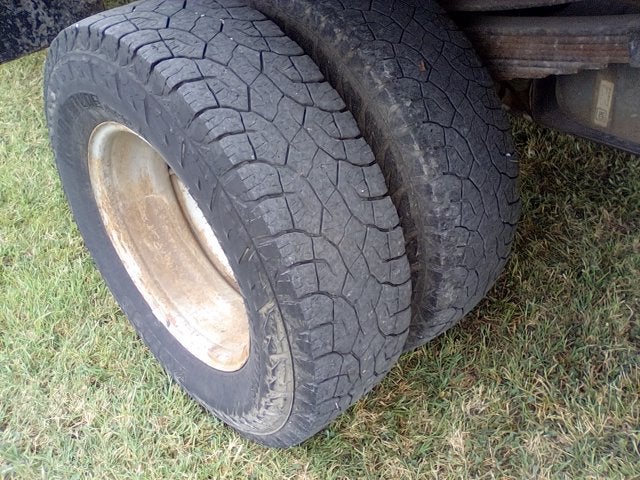

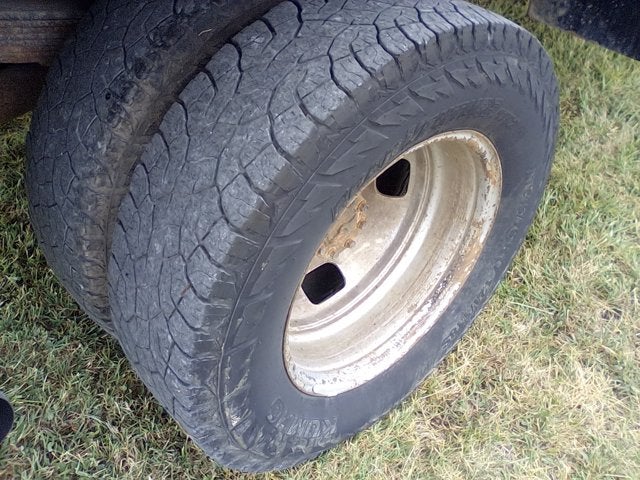

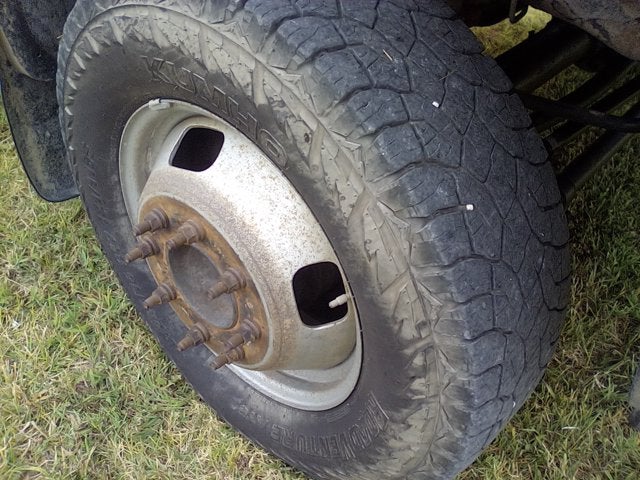

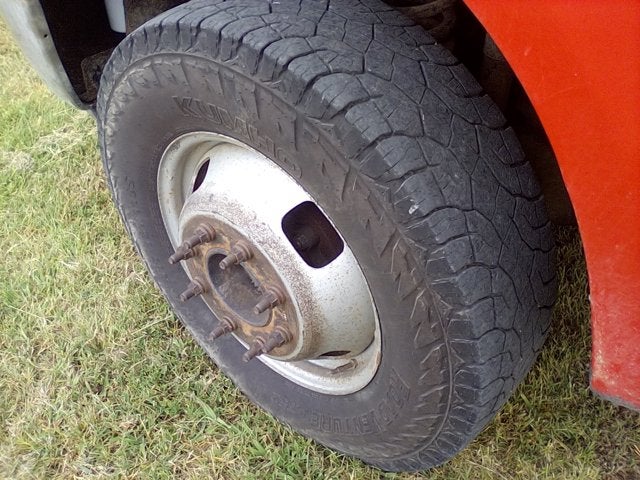

• Front Tire Size: LT245/75R17E
• Rear Tire Size: LT245/75R17E
• Front Tire Capacity (lbs): 2910
• Rear Tire Capacity (lbs): 2910
• Revolutions/Mile @ 45 mph - Front: 664
• Revolutions/Mile @ 45 mph - Rear: 664
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: 20.4
• Steering Ratio (:1), At Lock: 17.0
• Turning Diameter - Curb to Curb (ft): 53.4
• Turning Diameter - Wall to Wall (ft): 55.3
• Frame
• Frame Type: Ladder
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 40.0
• Fuel Tank Location: Aft-Axle
• Exterior Dimensions
• Wheelbase (in): 161.8
• Length, Overall w/o rear bumper (in): 246.6
• Width, Max w/o mirrors (in): 92.2
• Height, Overall (in): 80.2
• Overhang, Front (in): 37.2
• Overhang, Rear w/o bumper (in): 47.6
• Front Bumper to Back of Cab (in): 139.2
• Cab to Axle (in): 60.0
• Cab to End of Frame (in): 107.6
• Ground to Top of Load Floor (in): - TBD -
• Ground to Top of Frame (in): 34.6
• Frame Width, Rear (in): 34.1
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): 8.7
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 41.4
• Front Leg Room (in): 41.0
• Front Shoulder Room (in): 68.0
• Front Hip Room (in): 67.4
• Second Head Room (in): 38.2
• Second Leg Room (in): 32.2
• Second Shoulder Room (in): 68.0
• Second Hip Room (in): 67.3
• Summary

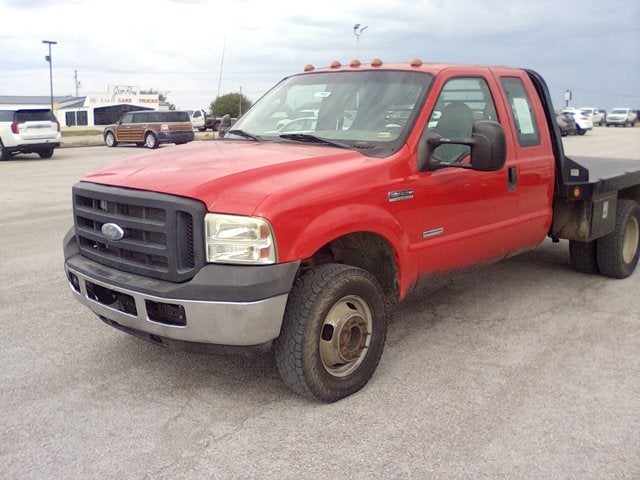

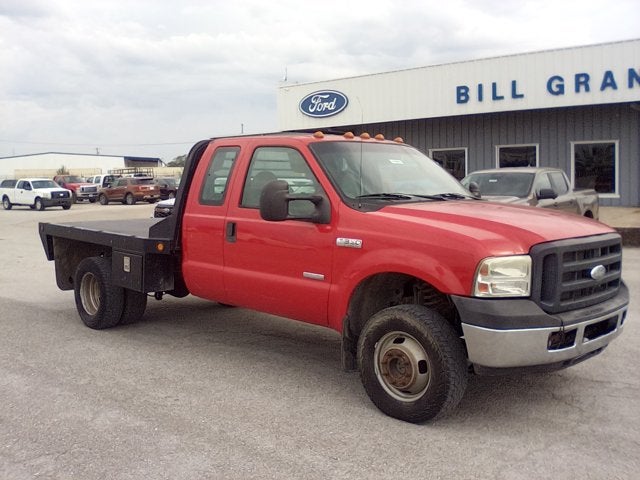

• Vehicle Name: Ford Super Duty F-350 DRW
• Body Style: Supercab
• Body Code: 162" WB
